Bright Green GridFlex is a flexible LED light sheet version of the established Bright Green Grid range. It is a modular, linear LED system for backlighting areas that require high brightness and excellent diffusion at restricted depth. Designed specifically for boxes with minimum depth of 40mm, Bright Green GridFlex is flexible and site cuttable.
Applications include architectural features, backlighting of stone, marble or onyx, columns, bars, reception desks and backlit glass walls. This simple flexible light sheet makes it extremely cost effective and highly reliable.
Installation is straightforward. Flexible LED light sheet panels are cut to size to match the site dimensions and electrically connected with pre-cut and stripped linking cables. Bright Green GridFlex is manufactured from fire retardant PCB and has a class 0 fire rating.
As well as a range of standard colour temperatures (2700, 4000, 6500K), there are dynamic white (2700-6500K) and PRO Range options.
To find out more, call us on 44 (0) 1932 355221 or complete our online enquiry form.
Size |
Colour Temp |
CRI |
LED Pitch |
Options |
Accessories |
|---|---|---|---|---|---|
480x240mm |
2700K 4000K 6500K |
>90 |
20mm |
PRORange specification |
Cable connections
Fixings |
480x240mm |
2700-6500K |
>90 |
24mm |
PRORange specification |
Cable connections
Fixings |
610x305mm |
RGB+2700-6500K |
25.4mm |
DMX/SPI pixels |
Cable connections
Fixings |
Size |
Colour Temp |
CRI |
LED Pitch |
Options |
Accessories |
|---|---|---|---|---|---|
480 x 240mm |
2700K 4000K 6500K |
>90 |
20mm |
PRORange specification |
Cable connections
Fixing clips |
480 x 240mm |
2700-6500K |
>90 |
24mm |
PRORange specification |
Cable connections
Fixing clips |
610 x 305mm |
RGB+2700-6500K |
25.4mm |
DMX/SPI pixe;s |
Cable connections
Fixing clips |
Resources
Many of our products are customised for projects or to the requirements of our customers. Our technical team is always ready to discuss your specific needs or to develop a product for your project.
The standard sheet size for static and dynamic white is 480 x 240mm. There are 3 standard colour temperatures and alternatives of IP20 and IP54. LED pitch is 20mm for single colour sheets and 24mm for dynamic white.
RGBW versions are available in sheet size 610 x 305mm and there are SPI/DMX versions with controllable pixel groups. These versions are perfect for dynamic RGB lighting such as runs, chases and patterns.

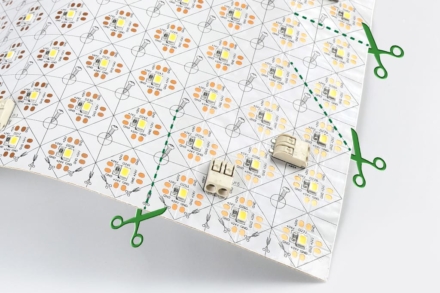

Bright Green GridFlex is flexible and site cuttable to 1 LED in standard versions and into pixel groups for DMX/SPI options.
Customised versions are available for special projects.
Installation is simple. Cut the sheet to shape, fix into place and then make the electrical connection. Bright Green flexible LED light sheet can also be moulded to curved surfaces and have perforations added to fit round obstacles.
Find out more in our installation guide and video.
Installation is simple. Cut the sheet to shape, fix into place and then make the electrical connection. Bright Green flexible LED light sheet can also be moulded to curved surfaces and have perforations added to fit round obstacles.
Find out more in our installation guide and video.
Tuneable white backlighting projects are made straightforward by the dynamic white version. A combination cool/warm PCB is used to combine the complete white CCT range onto one module.
The standard CCT range is 2700-6500K, which can be customised on request. Each colour channel is controllable by DALI, DMX and other conventional control protocols.
